Paper lid forming machines

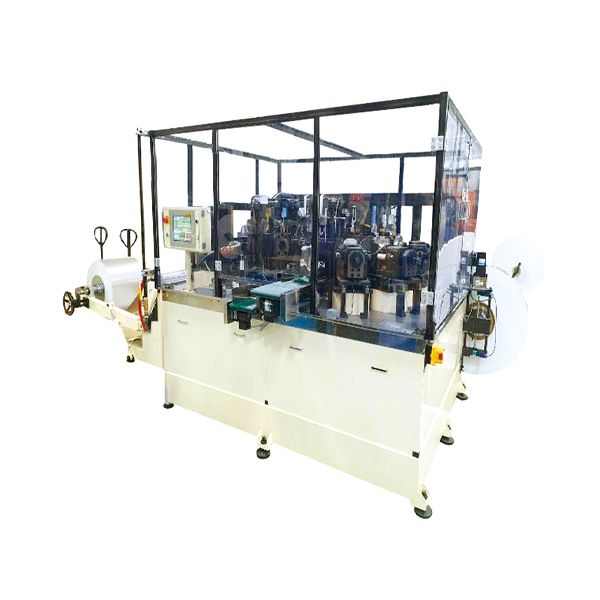

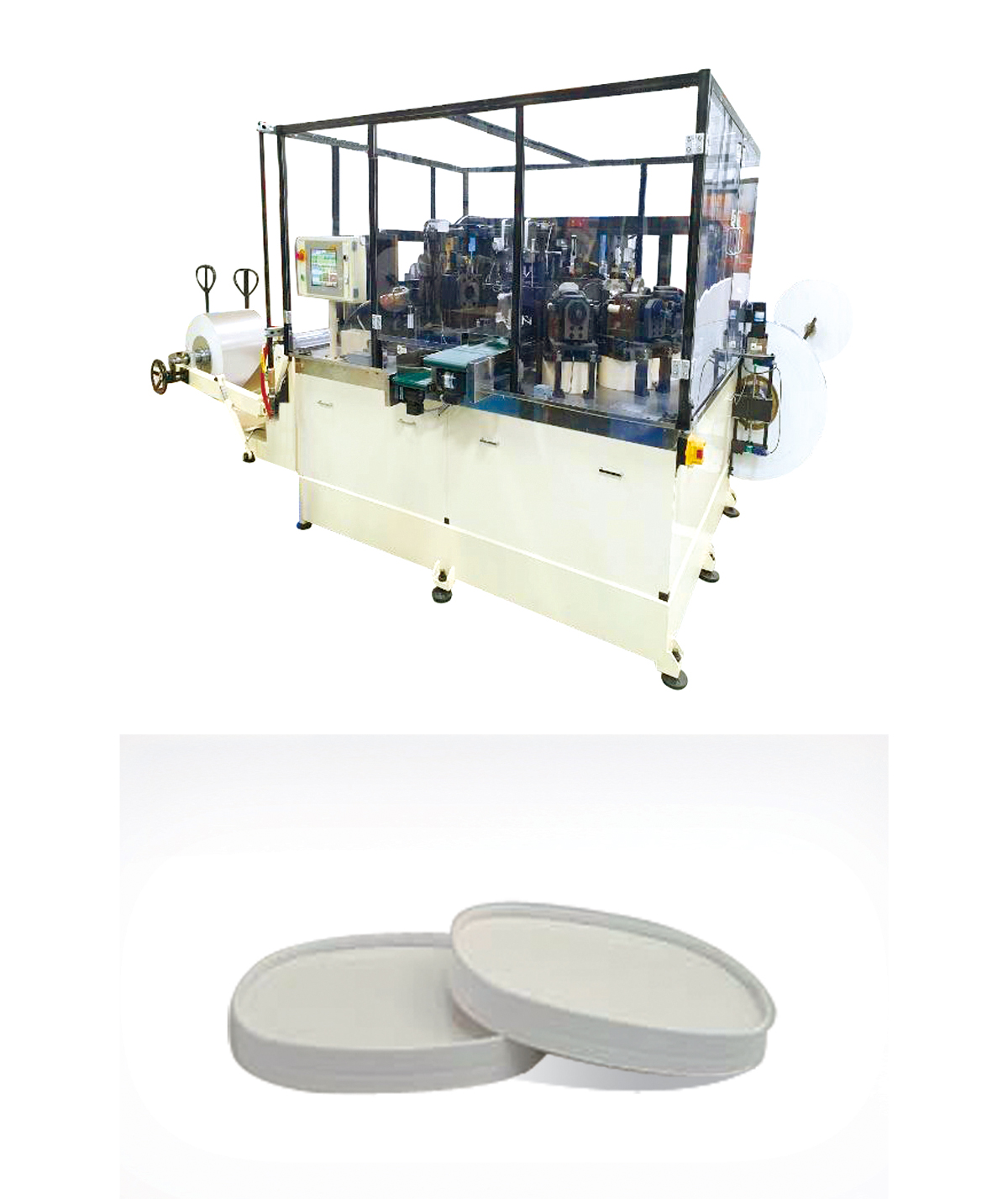

AP-1200XL-R Paper lid forming machine (Scround shape, Two pieces)

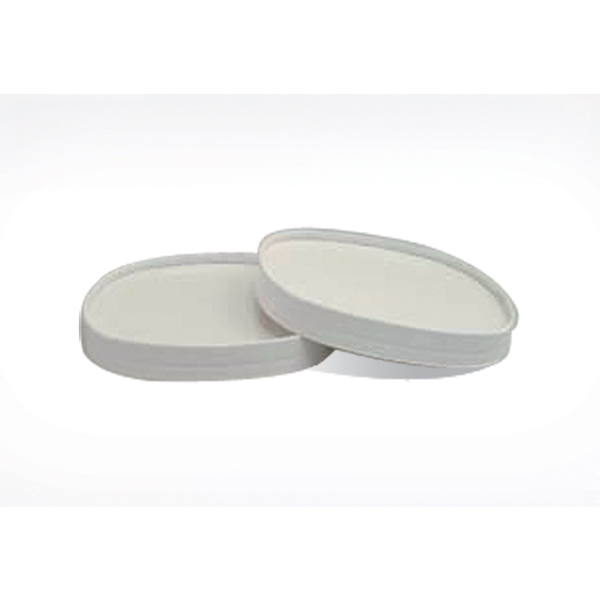

AP-1200XL- R is specialized for SCROUND type paper lid with 2-piece paper it can be applied in the dairy industry such as ice cream and cheese cup or container lid.
- AP 1200XL- R is not required to have additional cylindrical tube winding machine. Therefore, there are tremendous advantages in cost savings and the space reduction.
- AP-1200XL-R has production speed of Maximum 100 pcs per minute.
- AP-1200XL-R is also able to apply with “Blank Fed Type” for Top Disc.
- AP 1200XL- R is not required to have additional cylindrical tube winding machine. Therefore, there are tremendous advantages in cost savings and the space reduction.
- AP-1200XL-R has production speed of Maximum 100 pcs per minute.
- AP-1200XL-R is also able to apply with “Blank Fed Type” for Top Disc.
Specifications
Production Speed |
Max. 100 pcs per min. |
Sealing Method |
By Hot Air |
Cup Size Range |
Diameter: 80mmX80mm~175mmX132mm Height:14mm~20mm |
Paper |
One or Both side PE coated |
Paper Weight |
170gsm ~ 450gsm |
Electric Power |
220V, 50/60Hz,3P |
Electric Consumption |
35kW |
Air Requirment |
1.4㎥/min. at 5kg/㎠ |
Machine Weight |
8,900kgs |
