MACHINES
Plastic cup & Desto container forming machines

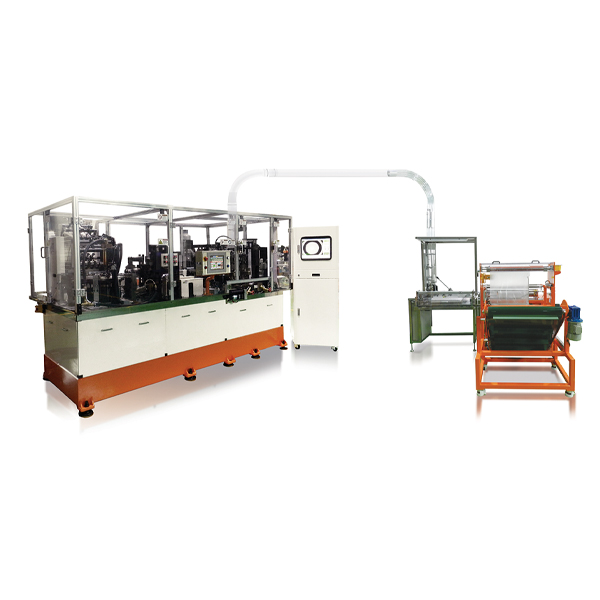

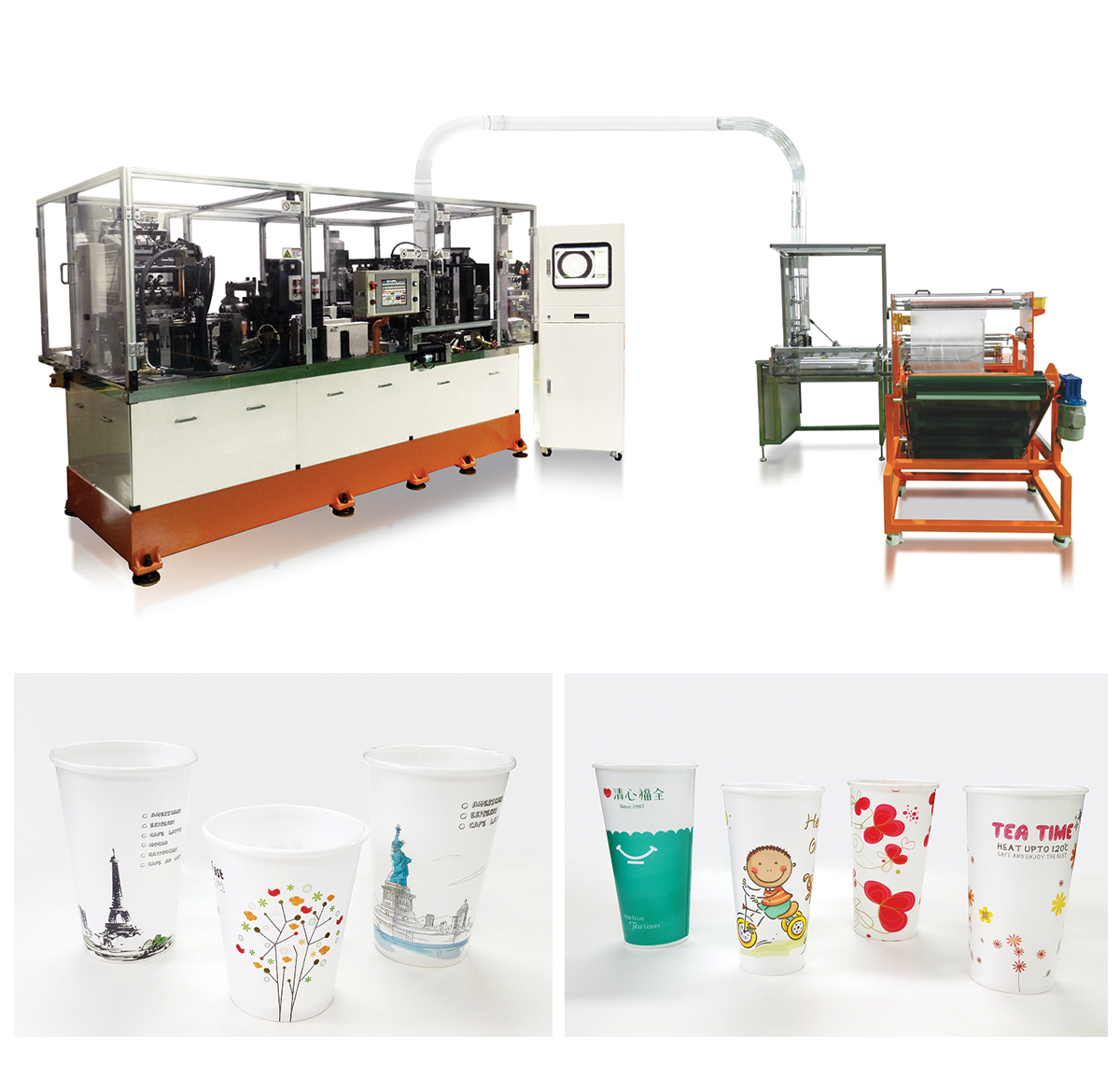

EAGLE-1800P Plastic cup forming machine

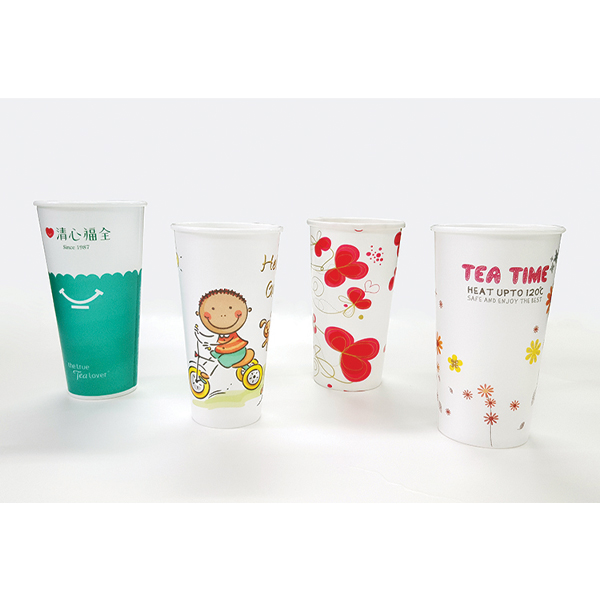

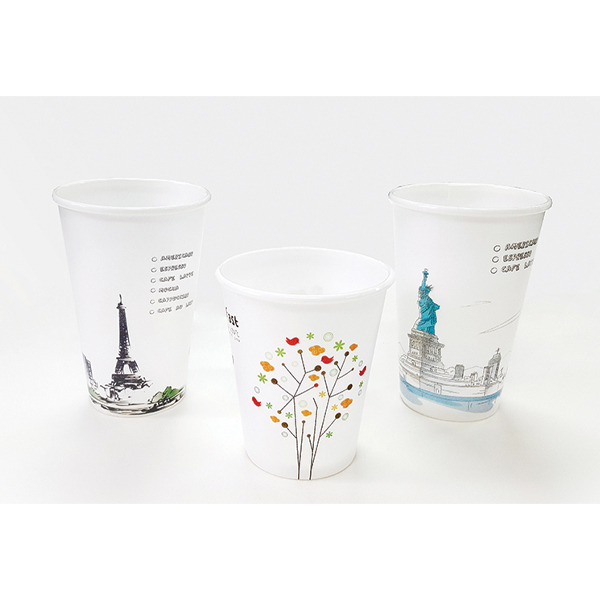

This EAGLE-1800P is our revolutionary new development to produce PP(Polypropylene) Foam cups and containers, which is excellent thermal insulation for both cold and hot beverages and foods.
Ace Pack offer innovative solution in the PP Foam c up forming machine using value added material. The PP Foam material is a sustainable product and fully recyclable as it is made of NO. 5 plastic Polypropylene.
Our new machine development is a joint cooperation with Taiwan company Reach Plastic Industrial Co., Ltd. to produce PP foam cups and containers.
Ace Pack offer innovative solution in the PP Foam c up forming machine using value added material. The PP Foam material is a sustainable product and fully recyclable as it is made of NO. 5 plastic Polypropylene.
Our new machine development is a joint cooperation with Taiwan company Reach Plastic Industrial Co., Ltd. to produce PP foam cups and containers.
Specifications
Production Speed |
Max. 160 cups per min. |
Cup Size Range |
4oz ~ 36oz |
Sealing Method |
By Hot Air |
Materials |
PP Foam sheet or PP sheet or EPS sheet |
Sheet Caliper |
PP foam sheet : 0.7mm ~ 1.0mm PP sheet : 0.25mm ~ 1.0mm |
Electric Power |
220V, 50/60Hz, 3P, 4W |
Electric Consumption |
35kW |
Air Requirment |
1.8㎥/min. at 5Kg/㎠ |
Machine Weight |
7,000kgs |
